Separating Cover from Padding

NOTE:

To make removal and installation easier, seat can be folded. Re-install handle to do this.

Removing

Fig 1: Separating Cover From Padding

Courtesy of AUDI OF AMERICA, LLC

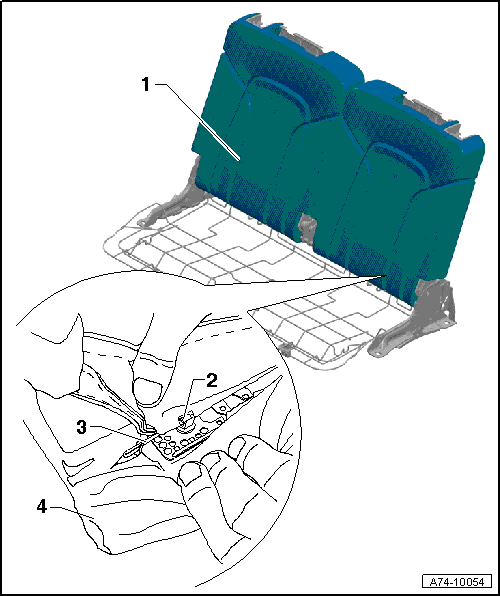

Fig 2: Prying Cover -1- Away From Clip -2- To Remove Cover Wire -3-

Courtesy of AUDI OF AMERICA, LLC

-- Pry cover wire -2- out with a screwdriver from behind direction of -arrow A- out of clip -3-.

-- Do the same with all other clips.

-- Remove cover -1- from cushion -4-.

Installing

Install in reverse order of removal.
