Seat Depth Adjustment Cover And Padding, Removing And Installing: Removing

-- Tilt seat all the way up.

-- Remove seat depth adjustment -1- forward.

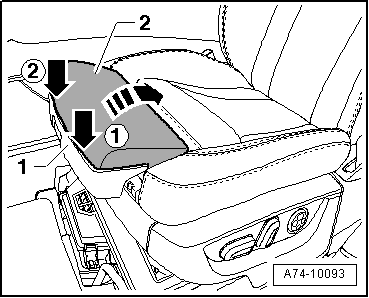

Fig 1: Disengaging Cover And Padding -2- At -Arrow 1- And -Arrow 2- To Remove In -Direction Of Dashed Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- First disengage cover and padding -2- at -arrow 1- and then -arrow 2- in direction of -arrow-.

-- Slide cover and padding back down off guides -5-.

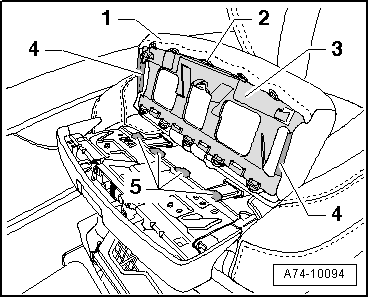

Fig 2: Identifying Cover -1-, Pry Wire -2-, Padding Retainer -3- And Fastening Strips -4-

Courtesy of AUDI OF AMERICA, LLC

-- Remove fastening strips -4-.

-- Using a screwdriver, pry wire -2- out of padding retainer guides -3-.

-- Remove cover -1- from padding wit padding retainer -3-.
