74 Seat Upholstery, Covers
>>
Covers And Cushion, Second Row, Individual Seats
>>
Seat Pan Cover And Padding Overview
Seat Pan Cover And Padding Overview

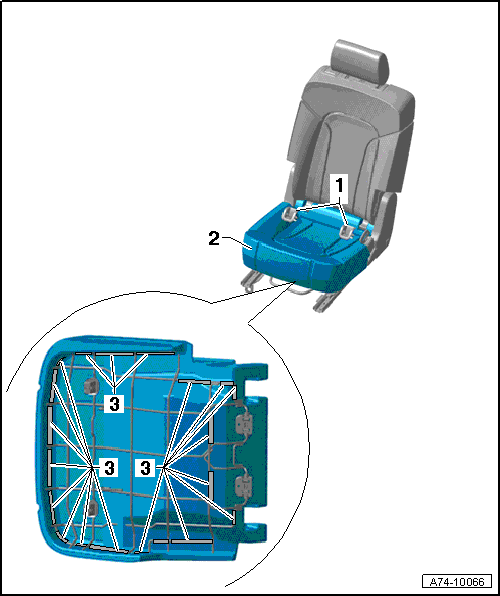

Fig 1: Identifying Seat Pan Cover And Padding
Courtesy of AUDI OF AMERICA, LLC
LATCH Caps
Removing and Installing. Refer to
LATCH CAP, REMOVING AND INSTALLING
.
Cover and Upholstery
Removing and Installing. Refer to
SEAT PAN COVER AND UPHOLSTERY, REMOVING AND INSTALLING
.
Fastening Strips
