Backrest Cover And Padding Overview

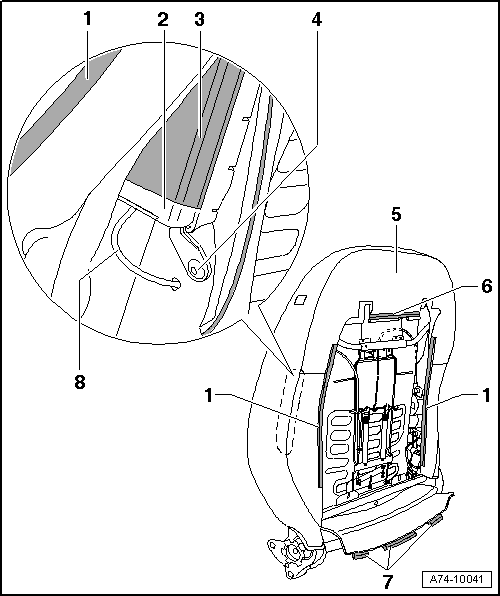

Fig 1: Identifying Backrest Cover And Padding

Courtesy of AUDI OF AMERICA, LLC

Side Fastening Strip
Side Airbag on the Driver/Passenger Side
- Removing and Installing. Refer to Driver Thorax Airbag Igniter -N199- AND Front Passenger Thorax Airbag Igniter -N200-, STANDARD POWER SEAT, REMOVING AND INSTALLING .
Side Airbag Pocket
Bolt
- Tightening specification: 10 Nm
- Always replace if removed.
Cover and Upholstery
- Removing and Installing. Refer to BACKREST COVER AND UPHOLSTERY, REMOVING AND INSTALLING .
Upper Retaining Strips
Lower Retaining Strips
Airbag Cable
