Seat Heating Element Overview

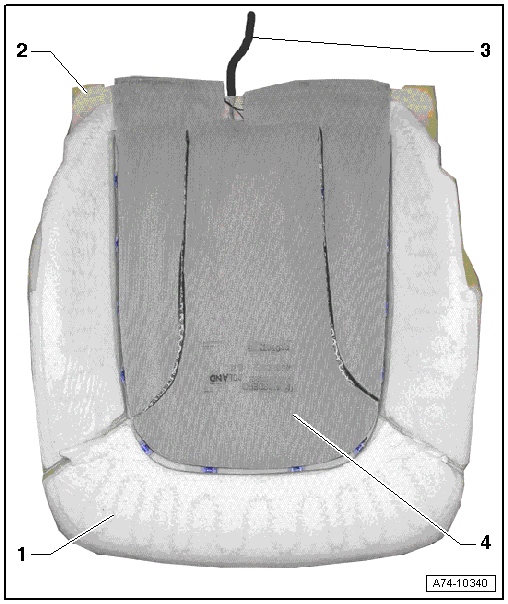

Fig 1: Identifying Seat Heating Element Overview

Courtesy of AUDI OF AMERICA, LLC

Bolster Heating Element
- Removing and Installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING .
Cushion
- For the lower seat frame.
Wiring
- Permanently attached to the heating element.
Seat Heating Element
- Removing and Installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING .
