Backrest Heating Element Overview

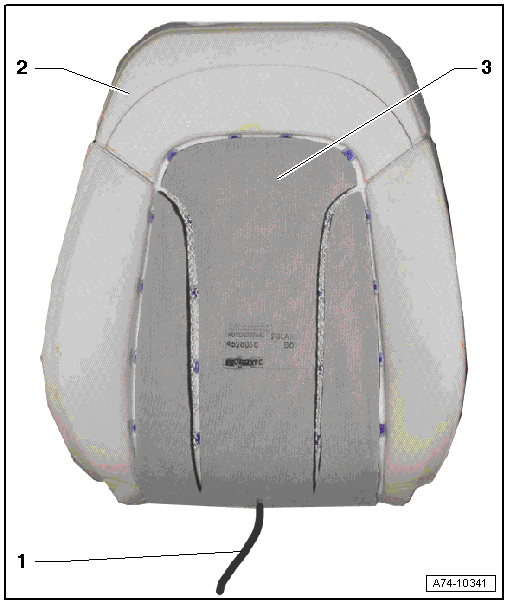

Fig 1: Identifying Backrest Heating Element Overview
GWWA74-10341Courtesy of AUDI OF AMERICA, LLC
  1. Wiring
    • Permanently attached to the heating element.
  2. Cushion
    • For the backrest.
  3. Backrest Heating Element
