Separating Cover from Padding

Removing

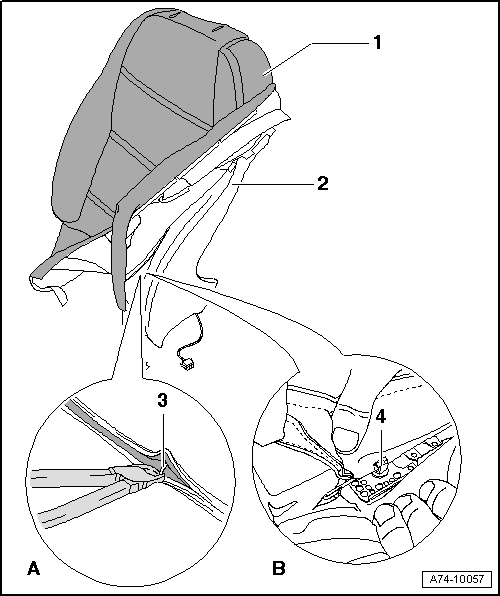

Fig 1: Separating Cover From Padding

Courtesy of AUDI OF AMERICA, LLC

Procedure

Version A upholstery clips. Refer to -item 3- Clip.

Fig 2: Identifying Cover And Upholstry Clips

Courtesy of AUDI OF AMERICA, LLC

-- Cut the upholstery clips -2-.

-- Remove cover -1- from cushion -3-.

Version B clip. Refer to -item 4- Clip.

Fig 3: Prying Cover -1- Away From Clip -2- To Remove Cover Wire -3-

Courtesy of AUDI OF AMERICA, LLC

-- Pry cover wire -3- out with a screwdriver from behind direction of -arrow A- out of clip -2-.

-- Do the same with all other clips.

-- Remove cover -1- from cushion -4-.

Installing

Install in reverse order of removal. Observe the following when doing so:

-- When installing new upholstery clips, use Upholstery Clip Pliers VAG1634.
