Fog Lamp, Adjusting

Checking and Adjusting Conditions

• Tire pressure OK
• The headlamp lens must be clean and dry.
• The headlamp lens may not be damaged.
• Headlamp reflectors and bulbs OK

With Steel Suspension:

• Vehicle load must be created.

Vehicle load on driver's seat in otherwise unloaded vehicle (curb weight).

• One person or 75 kg.

With Air Suspension:

• The compressed air reservoir must be filled. Start the engine and let it run at idle for approximately 2 minutes.

All Vehicles:

• Roll the vehicle several yards or move it back and forth several times to seat the springs.
• The electromechanical parking brake must not be engaged so vehicle is not under stress.
• Vehicle and headlamp adjusting unit must be on a level surface.
• The headlamp adjusting unit must be aligned to the vehicle Headlamp adjusting unit instructions.
• The inclination dimension is set on the headlamp adjusting unit Headlamp adjusting unit operating instructions.

Procedure

-- The vehicles must be standing on a flat surface.

-- Turn the headlamp switch to "low beam" - not "Auto".

-- Pull the headlamp switch to "fog lamp".

Procedure

Vehicles without S line equipment:

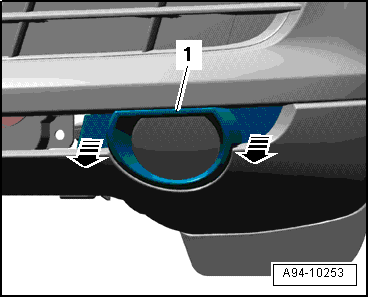

-- Remove air intake grille -1- in lower part of bumper cover -arrows-.

Vehicles with S Line Equipment:

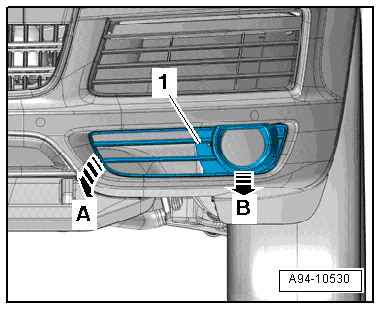

-- Remove the air inlet grille -1- in the lower part of the bumper cover in the sequenced shown in direction of -arrow A- and in direction of -arrow B-.

All Vehicles:

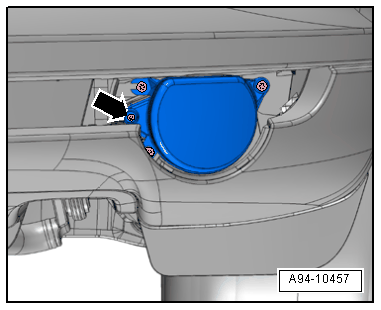

-- To adjust headlamp range, turn adjusting screw -arrow-.

• Angle dimension: 2%.
