Overview - EVAP System, A6 Hybrid
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi A6 Quattro, 2017 Audi A6, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

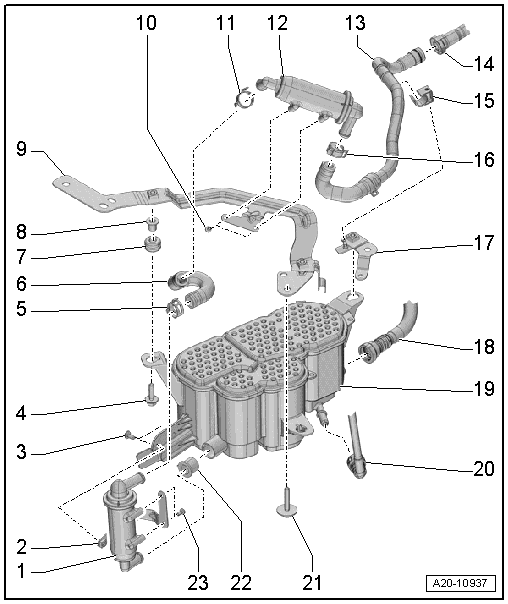

- Honeycomb Filter 1
- Removing and installing. Refer to HONEYCOMB FILTER, REMOVING AND INSTALLING .
- Bracket
- For the honeycomb filter
- Bolt
- 1.25 Nm
- Quantity: 2
- Bolt
- 20 Nm
- Quantity: 3
- Clamp
- Must be appropriate for the model type. Refer to the Parts information.
- Hose
- Rubber Grommet
- Quantity: 3
- Insert into the EVAP canister
- Bushing
- Quantity: 3
- Insert into the rubber grommet
- Bracket
- For the EVAP canister
- Bolt
- 1.25 Nm
- Quantity: 2
- Clamp
- Must be appropriate for the model type. Refer to the Parts information.
- Honeycomb Filter 2
- Removing and installing. Refer to HONEYCOMB FILTER, REMOVING AND INSTALLING .
- Vent Line
- To the EVAP canister air filter
- Vent Line
- To the left rear air filter under the wheel housing liner
- Removing and installing. Refer to LEAK DETECTION SYSTEM AIR FILTER, REMOVING AND INSTALLING .
- Bracket
- Quantity: 5
- For the vent line
- Clamp
- Must be appropriate for the model type. Refer to the Parts information.
- Bracket
- For the EVAP canister
- Breather Line
- From the fuel tank
- Connector coupling, separating and connecting. Refer to CONNECTOR COUPLINGS, SEPARATING .
- EVAP Canister
- Installed location: On the left side at the back of the underbody under the cover
- Removing and installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING, AUDI A6 HYBRID .
- Breather Line
- To Evap canister purge regulator valve 1 -N80-
- Connector coupling, separating and connecting. Refer to CONNECTOR COUPLINGS, SEPARATING .
- Clipped to the bracket
- Bolt
- 20 Nm
- Quantity: 3
- Seal
- Insert into the EVAP canister
- Bolt
- 1.25 Nm
- Quantity: 2

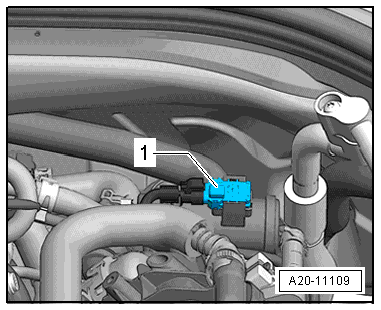

- EVAP Canister System Pressure Sensor -G804-
