Fuel System, Checking For Leaks
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi A6 Quattro, 2017 Audi A6, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Leak Detection System
- The function of the leak detection system is based on the premise that the fuel systems creates a natural vacuum when the fuel in the fuel tank becomes colder.
- For the leak detection the temperature and pressure measuring devices are needed. The Fuel Tank Leak Detection Control Module -J909- item -2- with an integrated Fuel Tank Pressure Sensor -G400- located on the EVAP canister -7- supplies these values.
- The system is considered to be closed when the measured vacuum is 2.5 mbar (1.87 mmHg) as the fuel tank temperature drops.
- There is a leak in the fuel system if there is not vacuum, which will result as an entry in the control module DTC memory.

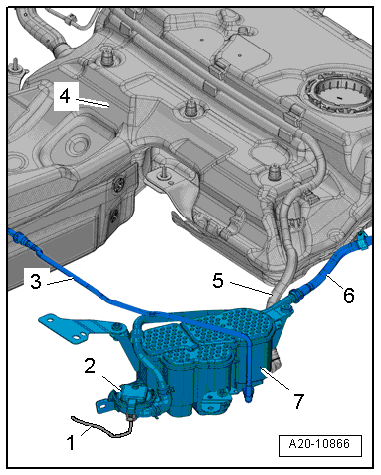

1 - Signal wire to the Engine Control Module -J623-
3 - Bleed line to the engine
4 - Fuel tank
5 - Fuel tank vent line
6 - Air filter vent line
