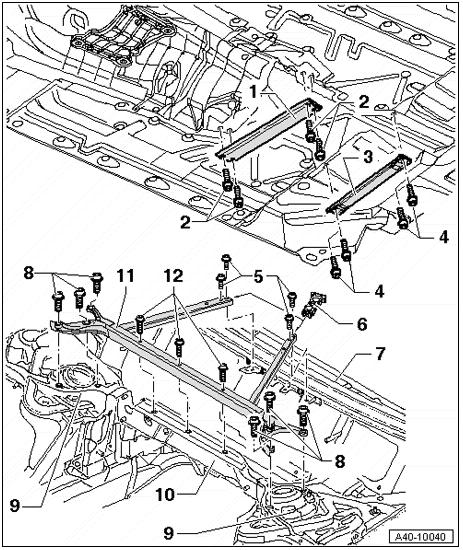

Crossmembers and Tower Brace, Assembly Overview

1 - Front crossmember

• Removing and installing → Front Crossmember, Removing and Installing

2 - Bolt, 23 Nm

3 - Rear crossmember

• Removing and installing → Rear Crossmember, Removing and Installing

4 - Bolt, 23 Nm

5 - Bolt, 9 Nm

6 - Window crossbrace connecting piece support

7 - Front window crossbrace

8 - Bolt, 44 Nm

9 - Suspension strut mounting bracket

10 - Plenum chamber front section

11 - Tower brace

• Removing and installing → Tower Brace, Removing and Installing

12 - Bolt, 3 Nm
