Center Headrest, Removing and Installing

Removing

• Remove rear seat bench → Rear Bench Seat, Removing and Installing .
• Remove rear seat backrest → Rear Backrest, Removing and Installing .

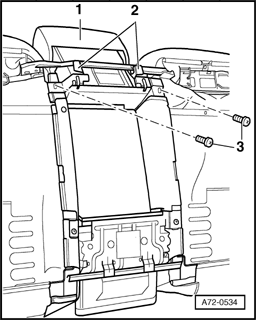

Fig 1: Center Headrest, Brackets & Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove bolts - 3  - (qty. 2).
• Disengage center headrest - 1  - downward from brackets - 2  - (2x) and remove center headrest - 1  -.

Installing

• Install center headrest - 1  - in reverse order of removal.
