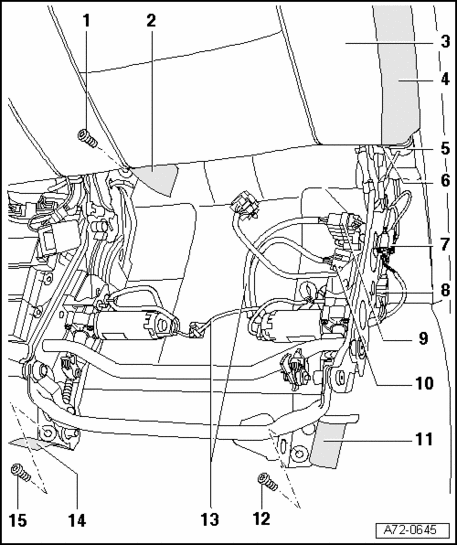

Individual Rear Seat, Removing and Installing
1 - Screw
- Tightening torque 55 Nm
2 - Tab
3 - Individual rear seat
- Removing
- Remove seat pan → Seat Pan, Removing and Installing .
- Disconnect harness connectors - 7 -, - 8 -, - 9 - and - 10 -.
- Disengage cable harness - 13 - from body.
- Lift strap - 11 - and unscrew bolt - 12 -.
- Lift strap - 14 - and unscrew bolt - 15 -.
- Pull off strap - 2 - and unscrew bolt - 1 -.
- Open seatbelt guide - 5 - at clip - 6 -.
- Thread belt webbing - 4 - out of seatbelt guide - 5 -.
- Unscrew bolt at belt guide mounting point - 4 - → Outer Seat Belt Strap, Removing and Installing .
- Lift individual rear seat - 3 - upward and out of vehicle in direction of vehicle travel.
- Installing
- Install individual rear seat - 3 - in reverse order of removal.
- Ensure that individual rear seat - 3 - engage on left and right sides on sliders into guides in body.
4 - Belt webbing
5 - Belt webbing guide
6 - Clip
7 - Connector
8 - Connector
9 - Connector
10 - Connector
11 - Tab
12 - Screw
- Tightening torque 55 Nm
13 - Cable harness
14 - Tab
15 - Screw
- Tightening torque 55 Nm
16 - Tab
17 - Screw
