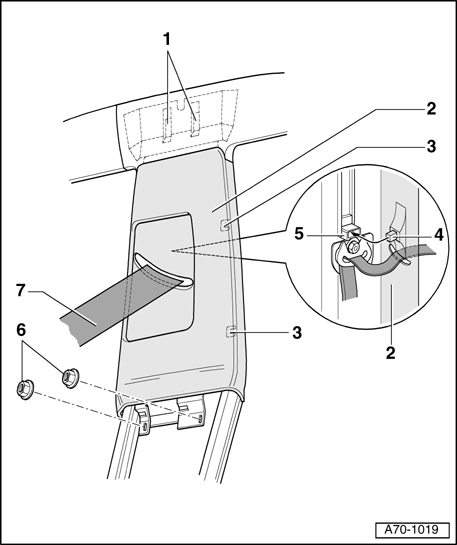

Upper B-Pillar Trim, Removing and Installing

1 - Retainers (qty. 2)

2 - Upper B-pillar trim

• Removing

• Unclip lower B-pillar trim in area of the upper B-pillar trim.
• Remove nuts - 6  - (qty. 2).
• Remove upper B-pillar trim - 2  - downward.
• For complete removal: Remove outer anchoring point → Outside Floor Assembly Anchorage Point and guide belt webbing - 7  - out.

• Installing

• Complete removal: Install outer anchoring point → Outside Floor Assembly Anchorage Point and guide belt webbing - 7  - in.
• Clip upper B-pillar trim - 2  - on brackets - 1  - (2x).
• Make sure the retaining pins - 4  - engage in the mount - 5  - on the eat belt height adjuster.
• Press on upper B-pillar trim - 2  -.

• Screw in nuts - 6  - (2x).

• Make sure that door rubber is pulled cleanly over upper B-pillar trim.
• Check function of belt height adjuster.

3 - Clips (qty. 2)

4 - Retaining pin on upper B-pillar trim

5 - Mount on belt height adjuster

6 - Nuts (qty. 2)

7 - Belt webbing
