Routing lines to the solenoid valve block

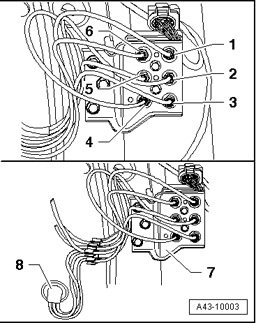

Fig 1: Routing Lines To Solenoid Valve Block

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Line routing - 1  - through - 6  - on solenoid valve block → Solenoid Valve Block, Line Arrangement

7 - Solenoid valve block

8 - Line grommet to the interior

- For air line to the left/right rear air spring dampers and the pressure reservoir
