Routing "blue" air line to the right rear air spring damper

WARNING: This page is about a different variant/trim than selected.

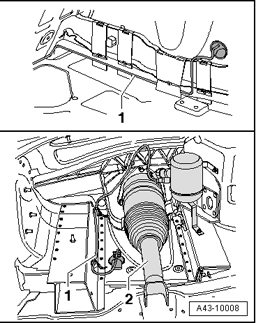

Fig 1: Routing "Blue" Air Line To Right Rear Air Spring Damper

Courtesy of VOLKSWAGEN UNITED STATES, INC.

The "blue" air line runs along the right side of the luggage compartment to the rear bench seat, along the seat and to the cable channel in the interior → Routing air lines in the interior

Blue air line to the right rear air spring damper
Right rear air spring shock absorber
