Electrical and Electronic Component Locations
WARNING: This page is about a different variant/trim than selected.

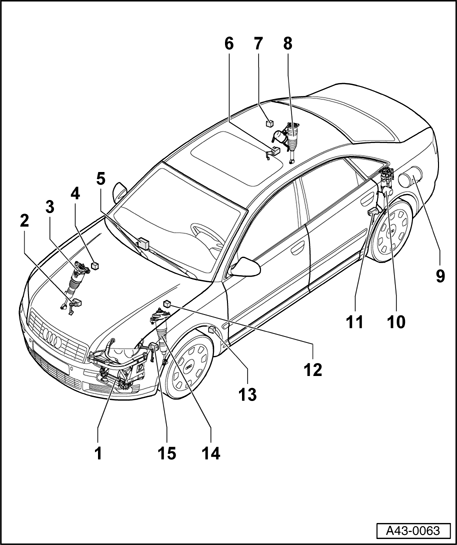

1 - Air supply unit
- Air Supply Unit, 8-Cylinder, Removing and Installing → Air Supply Unit, 8-Cylinder, Removing and Installing .
- Air Supply Unit, 10-Cylinder and 12-Cylinder Gasoline, Removing and Installing → Air Supply Unit, 10- and 12-Cylinder, Removing and Installing .
2 - Right Front Level Control Sensor G289
- Removing and installing → Front Level Control System Sensor, Removing and Installing
- After loosening, re-adapt control position → Control Position, Programming
- Can be checked in "Guided Fault Finding" using VAS 5051 A
3 - Right front air spring shock absorber
- With Right Front Dampening Adjustment Valve N337
- Removing and installing → AIR SPRING DAMPER, REMOVING AND INSTALLING
- Filling → AIR SPRING DAMPER, FILLING
4 - Right front body acceleration sensor G342
- Removing and installing → Front Body Acceleration Sensors, Removing and Installing
- Can be checked in "Guided Fault Finding" using VAS 5051 A
5 - Level control system control module J197
- Removing and installing → Level Control System Control Module, Removing and Installing
6 - Right Rear Level Control System Sensor G77
- Removing and installing → Rear Level Control System Sensor, Removing and Installing
- After loosening, re-adapt control position → Control Position, Programming
- Can be checked in "Guided Fault Finding" using VAS 5051 A
7 - Rear body acceleration sensor G343
- Removing and installing → Rear Body Acceleration Sensor, Removing and Installing
- Can be checked in "Guided Fault Finding" using VAS 5051 A
8 - Rear right air spring shock absorber
- With Right Rear Dampening Adjustment Valve N339
- Removing and installing → AIR SPRING DAMPER, REMOVING AND INSTALLING
9 - Pressure reservoir
- If pressure reservoir is removed, pressure reservoir system vent must first be performed with VAS 5051 A via "Guided Fault Finding"
- Removing and installing → Pressure Reservoir, Removing and Installing
10 - Rear left air spring shock absorber
- With Left Rear Dampening Adjustment Valve N338
- Removing and installing → AIR SPRING DAMPER, REMOVING AND INSTALLING
11 - Left Rear Level Control System Sensor G76
- Removing and installing → Rear Level Control System Sensor, Removing and Installing
- After loosening, re-adapt control position → Control Position, Programming
- Can be checked in "Guided Fault Finding" using VAS 5051 A
12 - Left front body acceleration sensor G341
- Removing and installing → Front Body Acceleration Sensors, Removing and Installing
- Can be checked in "Guided Fault Finding" using VAS 5051 A
13 - Solenoid valve block
- Removing and installing → Solenoid Valve Block, Removing and Installing
14 - Left front air spring shock absorber
- With Left Front Dampening Adjustment Valve N336
- Removing and installing → AIR SPRING DAMPER, REMOVING AND INSTALLING
15 - Left Front Level Control System Sensor G78
- After loosening, re-adapt control position → Control Position, Programming
- Can be checked in "Guided Fault Finding" using VAS 5051 A
