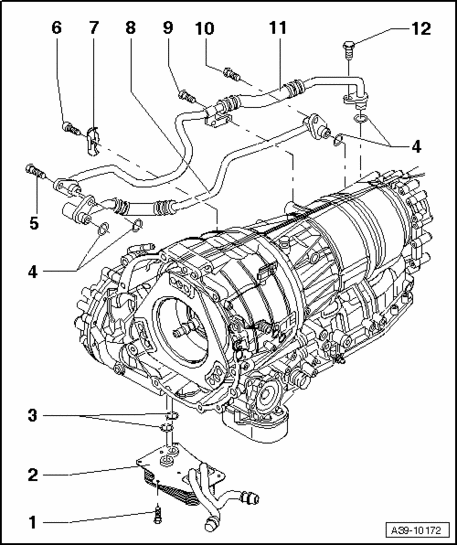

Gear oil cooler and lines, transmission with combined oil system, assembly overview
WARNING: This page is about a different variant/trim than selected.
1 - Bolt
- 10 Nm
2 - Axle oil cooler
- After removing axle oil cooler, fill transmission with axle oil → Gear oil in transmission, transmissions with combined oil systems, filling after repair
3 - O-Ring
- Always replace
4 - O-Ring
- Always replace
5 - Bolt
- 8 Nm
6 - Bolt
- 8 Nm
7 - Bracket
8 - Line
- Return line to transfer case
- After removing line, fill transmission with axle oil → Gear oil in transmission, transmissions with combined oil systems, filling after repair
9 - Bolt
- 8 Nm
10 - Bolt
- 8 Nm
11 - Line
- From transfer case to axle oil cooler
- After removing line, fill transmission with axle oil → Gear oil in transmission, transmissions with combined oil systems, filling after repair
12 - Bolt
- 8 Nm
