Rear transmission supports and transmission mounts, removing and installing

WARNING: This page is about a different variant/trim than selected.

Special tools, testers and auxiliary items required

Fig 1: Identifying Engine/Transmission Jack V.A.G. 1383 A

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

Fig 2: Transmission Mount Bolts & Transmission Crossmember Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 3: Removing Transmission Supports With Transmission Mounts From Transmission

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove left and right transmission supports (only right-side shown in illustration) with transmission mounts from transmission (3 bolts each) - arrows -.

A - Socket and key

NOTE:

If necessary, press down transmission at rear to access all bolts for transmission supports on transmission. Take note of selector lever cable when doing so.

Removing and installing transmission mounts from transmission supports

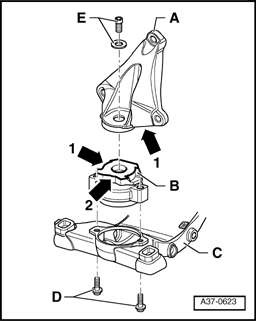

Fig 4: Removing/Installing Transmission Mounts From Transmission Supports

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Mark installation position of transmission mount - B - on transmission support - arrow 1 - , e.g. with a felt tip pen.
Secure transmission support - A - with transmission mount in a vise with jaw protectors.
Remove bolt - E - from transmission mount.
Attach new transmission mount to transmission support so that narrow side - arrow 2 - of transmission mount faces outward. In addition, make sure that the transmission mount is placed on marking (marked before removal).

NOTE:

In order to ensure the exact installation position of transmission mount, proceed according to the following steps.

First hand-tighten both transmission supports with transmission mounts to transmission.
Then check tunnel cross member bolt holes - D - on transmission mounts.
If necessary, adjust installation position of transmission mounts on transmission supports to prevent tension.

Installing

Installation is in reverse order of removal. Note the following:

Torque specifications

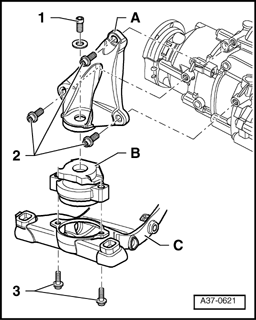

Fig 5: Installing Rear Transmission Supports With Transmission Mounts - Left Transmission Support

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Left transmission support:

Component	Nm
Bolts - 2 - for transmission support - A - to transmission	40
Bolt - 1 - for transmission mount - B - to transmission support	40
Transmission mount - B - to tunnel cross member bolts - 3 -	23

Right transmission support:

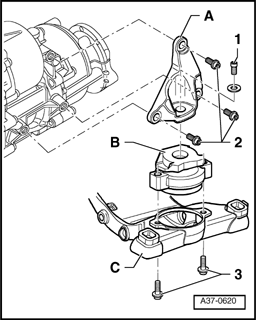

Fig 6: Installing Rear Transmission Supports With Transmission Mounts - Right Transmission Support

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Component	Nm
Bolts - 2 - for transmission support - A - to transmission	40
Bolt - 1 - for transmission mount - B - to transmission support	40
Transmission mount - B - to tunnel cross member bolts - 3 -	23
