Front transmission supports and transmission mounts, removing and installing

WARNING: This page is about a different variant/trim than selected.
Fig 1: Air Duct, Sound Insulation Panel, Heat Shields & Driveshaft
GW00029332Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 2: Rear Subframe & Bolts
GW00029345Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 3: Transmission Support With Transmission Mount Components - Right
GW00029352Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • Both front transmission mounts must always be detached from subframe.

Removing right transmission support with transmission mount

Item Component
- - Subframe
- - 2 x Bolt
  • Transmission mount to subframe
- - Spacer plate
- - Transmission mount
- - Heat shield for transmission mount
- - Washer
- - Shield for electrical (not on diesel engines)
- - Final drive support
- - Nut with washer
  • Transmission mount to transmission support
- - , - - , - - Bolt
  • Transmission support to transmission

Removing left transmission supports with transmission mounts

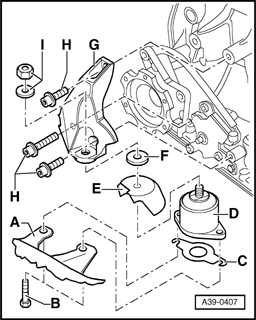

Fig 4: Transmission Support With Transmission Mount Components - Left
GW00029353Courtesy of VOLKSWAGEN UNITED STATES, INC.
Item Component
- - Subframe
- - 2 x Bolt
  • Transmission mount to subframe
- - Spacer plate
- - Transmission mount
- - Heat shield for transmission mount
- - Washer
- - Final drive support
- - 3 x Bolt
  • Transmission support to transmission
- - Nut with washer
  • Transmission mount to transmission support

Installing right and left front transmission supports with transmission mounts

Right transmission support:

Fig 5: Transmission Support With Transmission Mount Components - Right
GW00029352Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • If equipped, also fasten shield - - between transmission and transmission support.
Item Component Nm
- - , - - , - - Bolt
  • Transmission support to transmission
  • Follow tightening sequence - 1 through 3  -
40

Left transmission support:

Fig 6: Transmission Support With Transmission Mount Components - Left
GW00029353Courtesy of VOLKSWAGEN UNITED STATES, INC.
Item Component Nm
- - 3 x Bolt
  • Transmission support to transmission
40
Fig 7: Rear Subframe & Bolts
GW00029345Courtesy of VOLKSWAGEN UNITED STATES, INC.

Left and right transmission supports

Fig 8: Transmission Support With Transmission Mount Components - Left
GW00029353Courtesy of VOLKSWAGEN UNITED STATES, INC.

Adjustment of transmission mount

NOTE:
  • To adjust the transmission mount, the thickness of the spacer plates - - on the right and left side must be determined.
  • Spacer plates are available in thicknesses of 0.5; 1.0; 2.0 and 3.0 mm .

Determine gap between transmission mount and subframe:

Determination of final spacer plate:

For thickness of the final spacer plate(s), an additional 1.0 mm must be added to determined gap.

Right transmission support

Fig 9: Transmission Support With Transmission Mount Components - Right
GW00029352Courtesy of VOLKSWAGEN UNITED STATES, INC.
Item Component Nm
- - 2 x Bolt
  • Transmission mount to subframe
23
- - Nut with washer
  • Transmission mount to transmission support
40

Left transmission support

Fig 10: Transmission Support With Transmission Mount Components - Left
GW00029353Courtesy of VOLKSWAGEN UNITED STATES, INC.
Item Component Nm
- - 2 x Bolt
  • Transmission mount to subframe
23
- - Nut with washer
  • Transmission mount to transmission support
40
Fig 11: Air Duct, Sound Insulation Panel, Heat Shields & Driveshaft
GW00029332Courtesy of VOLKSWAGEN UNITED STATES, INC.
