Selector lever handle, removing and installing

Removing

• Place selector lever in position "D".

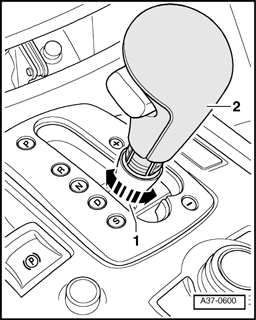

Fig 1: Selector Lever Handle, Removing/Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Rotate sleeve - 1  - clockwise until it engages. Slide sleeve down in this position.
• Remove handle - 2  - from selector lever.

Installing

Installation is in reverse order of removal, note the following:

• Place selector lever in position "D".
• Place sleeve - 1  - on selector lever.
• Press handle - 2  - onto selector lever as far as stop.

• Installation position: Button facing driver.

• Slide sleeve up while rotating until tabs on sleeve engage in slits on handle.
• Rotate sleeve counter clockwise until it engages.
