Intake manifold lower part, removing and installing: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
- All cable ties which are opened or cut open when removing, must be replaced in the same position when installing.
- Remove upper part of intake manifold → Intake manifold upper part, removing and installing .
- Separate electrical connections at fuel injectors, thereby pressing release tabs down and then inward - arrow -.

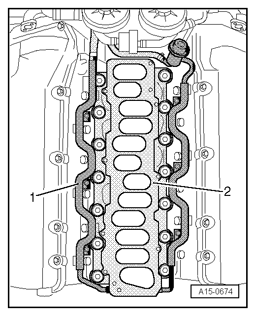

- Remove bolts for fuel rail - 1 -.
- Unbolt intake manifold lower part - 2 -.
- Pull intake manifold lower part with fuel rail upward and off, with fuel hoses remaining connected.
NOTE:
- Plug the intake ports of the cylinder head with clean rags.
