Fuel rail with injectors, assembly overview

WARNING: This page is about a different variant/trim than selected.

NOTE:

Depending on vehicle equipment, the appearance of the fuel rail can differ from the one shown in the illustration.

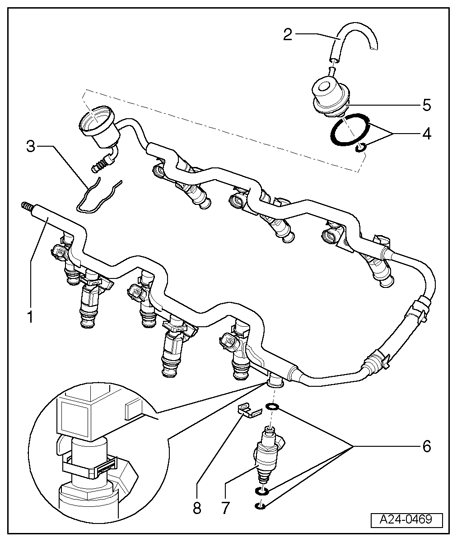

Fig 1: Fuel Rail With Injectors, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Fuel rail

2 - to Intake manifold

3 - Retaining clip

4 - O-ring

5 - Fuel pressure regulator

6 - O-ring

7 - Fuel injector

8 - Retaining clip
