Oil Pan Upper Section, Removing and Installing

WARNING: This page is about a different variant/trim than selected.

Special tools, testers and auxiliary items required

Fig 1: 3094 Hose Clamps

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Hose clamps up to 25 mm diameter 3094
Hand drill with plastic brush attachment
Protective glasses
Sealant

Removing

Remove both front wheels.

NOTE:

Secure the brake discs with wheel bolts.

Remove front part of left front wheelhouse liner → 66 - EXTERIOR EQUIPMENT .

Fig 2: Identifying Exhaust Pipe Fasteners

Courtesy of VOLKSWAGEN UNITED STATES, INC.

For vehicles with auxiliary heater, remove bolts - arrows - for exhaust pipe of auxiliary heater on sound insulation.

Fig 3: Noise Insulation Quick-Release Fasteners

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Loosen quick-release fasteners - 1 - and - 2 - and remove sound insulation.

Fig 4: Identifying Hydraulic Hose, Hydraulic Pressure Line & Hose Clamps 3094

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Clamp off return hose for power steering pump with Hose Clamps Up to 25 mm dia. 3094.
Disconnect return hose - 1 - from power steering pump.

NOTE:

Ignore - 2 - in the illustration.

Fig 5: Air Duct Hoses

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull off both air duct hoses - arrows - at bottom of lower part of left air filter housing by pressing release buttons.

Fig 6: Mass Air Flow (MAF) Sensor 2 G246 Electrical Connector, Air Duct Hose, Intake Manifold Air Duct Hose & Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Separate electrical connector - 3 - for Mass Air Flow (MAF) sensor 2 G246.
Disconnect hose - 2 - from air duct.
Disconnect air duct - 1 - at intake manifold.
Remove bolts - arrows -.

Remove upper part of left air filter housing.

Fig 7: Air Duct & Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove air duct - 1 -.
Remove bolts - arrows -.
Remove lower part of left air filter housing.

NOTE:

Place a rag under the hydraulic line to catch escaping hydraulic fluid.

Fig 8: Identifying Hydraulic Hose, Hydraulic Pressure Line & Hose Clamps 3094

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect hydraulic pressure line - 2 - at power steering pump and set it aside on top of longitudinal member.

NOTE:

Ignore - 1 - in the illustration.

Fig 9: Pulling Engine Cover At Rear And Middle Upward And Off & Pulling Engine Cover Forward And Off Of Intake Manifold

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Carefully pull engine cover at rear and middle upward and off - arrows 1 -.
Then, pull engine cover forward and off of intake manifold - arrows 2 -.

Fig 10: Relieving Tension On Ribbed Belt

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pivot tensioning device in direction of - arrow - to relieve tension on ribbed belt.
Remove ribbed belt from power steering pump belt pulley and release tensioning device.

NOTE:

The ribbed belt stays in position on the remaining belt pulleys.

Fig 11: Power Steering Pump Belt Pulley Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - arrows - and remove belt pulley - 1 - from power steering pump.

Fig 12: Power Steering Pump Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - arrows - and remove power steering pump.

Fig 13: Bracket For Power Steering Pump & Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - arrows - and remove bracket for power steering pump.
Lower subframe → Subframe, Lowering for Repair .
Remove oil pan lower part → Oil Pan Lower Section, Removing and Installing .
Remove oil pump → Oil Pump, Removing and Installing .

Fig 14: Left Engine Mount Electrical Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect electrical connector - arrow - at left engine mount and move electrical wiring clear.

Fig 15: Oil Pan Upper Part Electrical Harness Connectors

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove retainer for connections - 1 to 4 - from oil pan upper part.
Disconnect electrical harness connectors - 1 to 4 -.
Remove engine/transmission bolts in area of oil pan upper part.
Remove bolts for oil pan upper part.

Remove oil pan upper part.

Installing

Fig 16: Using Rotating Plastic Brush To Remove Sealant Residue On Timing Chain Covers And On Cylinder Block And Cylinder Head

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Using rotating plastic brush, remove any remaining sealant from oil pan upper part and engine bearing bracket.

CAUTION: Wear safety glasses.

Clean sealing surfaces and ensure they are free of oil and grease.

Fig 17: Cutting Tube Nozzle At Front Marking

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Cut off nozzle on tube of sealant at front mark (diameter of nozzle approx. 2 mm).

Fig 18: Applying Sealant Bead On Clean Sealing Surface Of Oil Pan Upper Part

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Apply sealant bead - arrow - on clean sealing surface of oil pan upper part as shown in illustration.

Thickness of sealant bead: 1.5 to 2 mm.

NOTE:

Sealant bead must not be thicker than specified, otherwise sealant could get into oil pan and clog the oil pump strainer.

Fig 19: Identifying Contact Surfaces Of Cylinder Block And Oil Pan Upper Part Are Aligned To Transmission

Courtesy of VOLKSWAGEN UNITED STATES, INC.

The oil pan upper part must be installed within 5 minutes after application of sealant.
With the engine removed, make sure that the contact surfaces of the cylinder block and the oil pan upper part are aligned to the transmission - arrow -.

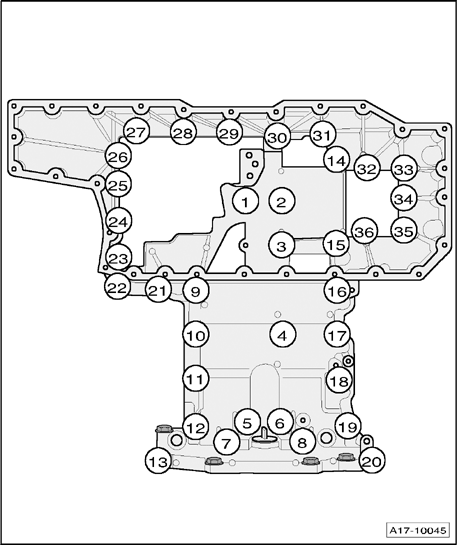

Fig 20: Oil Pan Upper Section Bolts Tightening Sequence

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Set oil pan upper part in place and pre-tighten all bolts to 5 Nm in sequence - 1 to 36 -.
Tighten bolts for oil pan upper part/transmission - dark shaded areas - to 45 Nm.
Tighten bolts - 1 to 36 - to 9 Nm.
Tighten bolts M8 - 1 to 20 - to 20 Nm.

The rest of the installation is performed in reverse order of removal, noting the following:

Install oil pump → Oil Pump, Removing and Installing .
Install oil pan lower part → Oil Pan Lower Section, Removing and Installing .
Add engine oil and check oil level → Engine Oil Level, Checking .
Install subframe → 40 - FRONT SUSPENSION .

Install power steering pump → 48 - Steering .

NOTE:

After replacing the oil pan upper part, check the alignment of the power steering pump and air conditioning compressor belt pulleys. → Power Steering Pump Belt Pulley and Air Conditioning Compressor Belt Pulley, Checking Alignment .

Install ribbed belt → Ribbed Belt, Removing and Installing .

Tightening torques

Component		Nm
Oil pan upper part	M6	9
To cylinder block	M8	20
Bracket for power steering pump to engine		32
