Oil Pan Lower Section, Removing and Installing: Notes

WARNING: This page is about a different car, the 2009 Audi S8, 2008 Audi S8, and 2007 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

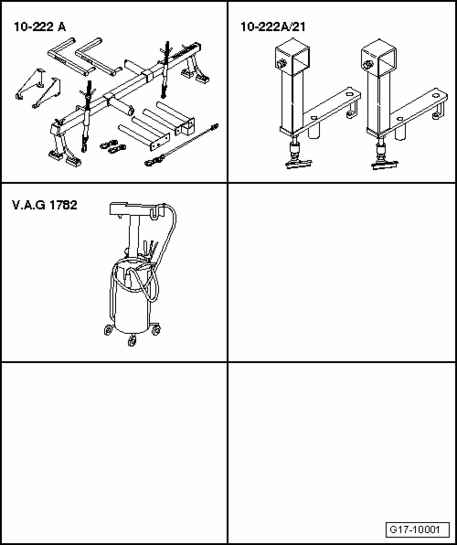

Fig 1: Identifying Special Tools - Oil Pan Lower Section, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Engine support bridge 10 - 222 A
Adapter 10 - 222 A/21
Old oil collecting and extracting device V.A.G 1782
Hand drill with plastic brush attachment

Protective glasses
Sealant
