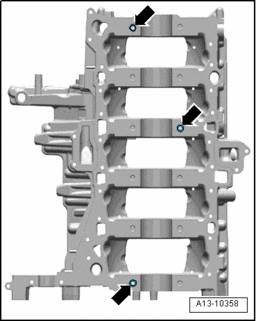

Fig 1: Installation Position Of Alignment Bushings
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Check whether alignment bushings - arrows
- are inserted at locations in guide frame as shown in the illustration.
