Baffle plate tightening plate

WARNING: This page is about a different car, the 2009 Audi S8, 2008 Audi S8, and 2007 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

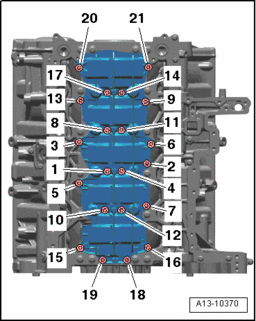

Fig 1: Baffle Plate Bolts Tightening Sequence
GW00022287Courtesy of VOLKSWAGEN UNITED STATES, INC.
