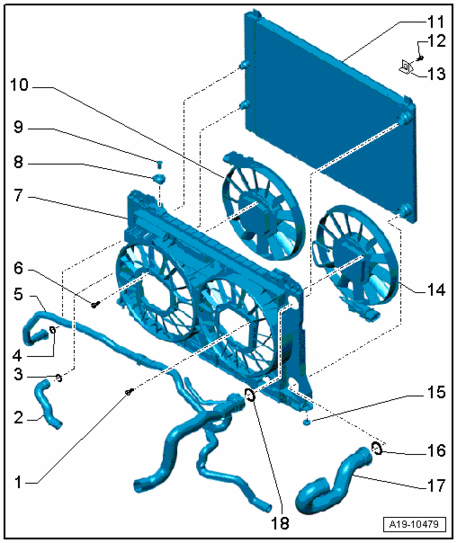

Radiator and coolant fan, assembly overview
WARNING: This page is about a different car, the 2006 Audi A8, 2005 Audi A8, and 2004 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.
1 - 10 Nm
- Replace
2 - Coolant hose
- To pull off, disengage retaining clip
3 - O-ring
- Replace
4 - O-ring
- Replace
5 - Coolant hose
- To pull off, disengage retaining clip
- Version pictured for radiator with bypass; converting to bypass → Converting to radiator with bypass
6 - 10 Nm
- Replace
7 - Fan rib
- Removing and installing → Fan shroud, removing and installing
- Version pictured for radiator with bypass; converting to bypass → Converting to radiator with bypass
8 - Rubber buffer
- Disengage and remove using screwdriver
9 - Retaining pin
10 - Coolant Fan V7
- With Coolant Fan Control (FC) Control Module J293
- Removing and installing → Coolant Fan V7 and Coolant Fan 2 V177 , removing and installing
11 - Radiator
- Removing and installing → Radiator, removing and installing
- After replacing, replace entire amount of coolant
- Version pictured with bypass; converting to bypass → Converting to radiator with bypass
12 - 6 Nm
13 - Bracket for radiator
14 - Coolant Fan 2 V177
- With Coolant Fan Control (FC) Control Module 2 J671
- Removing and installing → Coolant Fan V7 and Coolant Fan 2 V177 , removing and installing
15 - Rubber bushing
16 - O-ring
- Replace
17 - Coolant hose
- To pull off, disengage retaining clip
18 - O-ring
- Replace
