Cooling system, draining and filling: Notes

WARNING: This page is about a different car, the 2006 Audi A8, 2005 Audi A8, and 2004 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

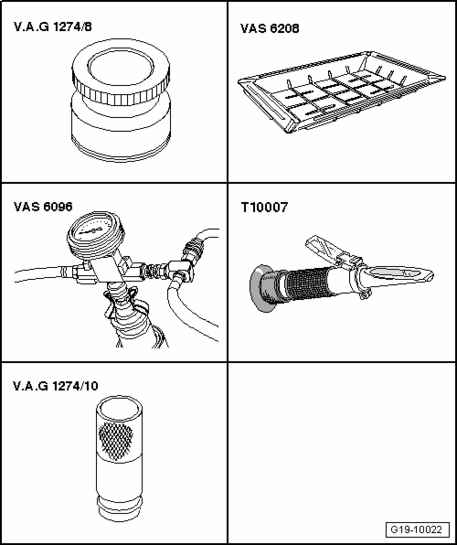

Fig 1: Cooling System, Draining And Filling

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Adapter for cooling system tester V.A.G 1274/8
Drip tray for workshop crane VAS 6208
Cooling system charge unit VAS 6096 with replacement reservoir VAS 6096/1
Refractometer T10007

Adapter V.A.G 1274 tester V.A.G 1274/10
