Coolant pump, removing and installing

WARNING: This page is about a different car, the 2006 Audi A8, 2005 Audi A8, and 2004 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

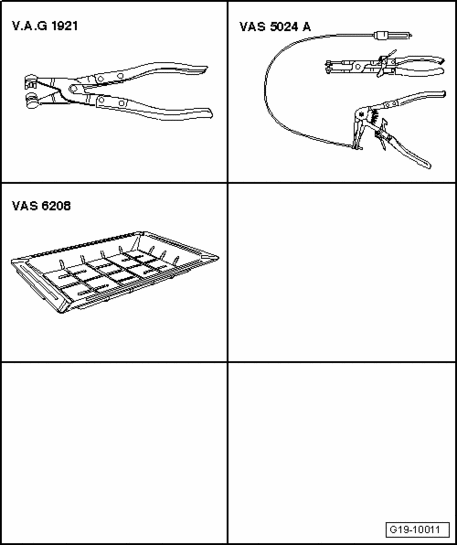

Fig 1: Identifying Special Tools - Coolant Pump, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Drip tray for workshop crane VAS 6208
Hose clamp pliers V.A.G 1921
Spring-type clip pliers V.A.S 5024 A

Removing

Drain coolant → Cooling system, draining and filling .
Toothed belt, removing → Toothed belt, removing and installing .

Fig 2: Removing Nuts For Toothed Belt Guard At Left Rear, Bolts For Coolant Pump And Coolant Pump

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove nuts - 2 - for toothed belt guard at left rear.
Remove bolts - 1 - for coolant pump and remove coolant pump.

Installing

Installation is in reverse order of removal, note the following:

NOTE:

Replace seals.

Clean sealing surfaces at cylinder block.
Install toothed belt (adjust timing) → Toothed belt, removing and installing .
Fill with coolant.
Install torque support → Torque support (with torque support valve N382), assembly overview .

Torque specifications

Component	Nm
Coolant pump to cylinder block	14 ¹⁾

¹⁾ Bolt class 10.9
