Oil check valves, replacing

WARNING: This page is about a different car, the 2006 Audi A8, 2005 Audi A8, and 2004 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If irregular valve noise occurs repeatedly during short journeys and disappears after extended driving, the oil check valves must be replaced.

Removing

Remove intake manifold → 24 MULTIPORT FUEL INJECTION (MFI) .

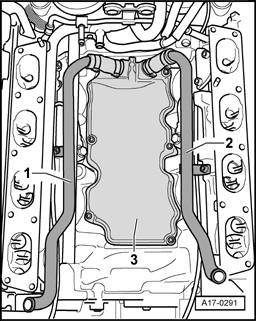

Fig 1: Removing Crankcase Ventilation Pipes

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove crankcase ventilation pipes - 1 - and - 2 -.
Remove cover - 3 - below intake manifold.

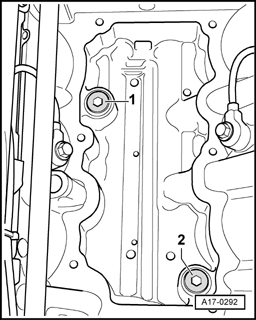

Fig 2: Removing Oil Check Valves

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove oil check valves - 1 - and - 2 -.

Installing

Installation is in reverse order of removal, note the following:

NOTE:

Replace gaskets and O-rings.
Secure all hose connections using hose clamps of series-production status

Install intake manifold → 24 MULTIPORT FUEL INJECTION (MFI) .

Torque specifications

Component	Nm
Oil check valve to cylinder block	20
Cover to cylinder block	10
