Toothed belt guards, assembly overview

WARNING: This page is about a different car, the 2006 Audi A8, 2005 Audi A8, and 2004 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

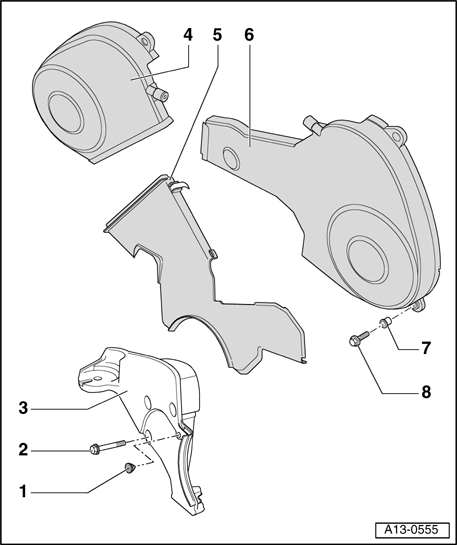

Fig 1: Toothed Belt Guards, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Plugs

2 - 43 Nm

3 - Bracket

For Torque Support Valve N382

4 - Toothed belt guard, right

5 - Toothed belt guard, center

6 - Toothed belt guard, left

7 - Sleeve

8 - 10 Nm
