Lock carrier, pulling toward front

WARNING: This page is about a different car, the 2006 Audi A8, 2005 Audi A8, and 2004 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Support Tool 3369

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Support tool 3369

NOTE:

Before raising the vehicle on a hoist (wheels off the ground), first activate the vehicle jack mode → 43 - Self Leveling Suspension .

Work procedure

For vehicles with auxiliary heater

Fig 2: Removing Bolts For Exhaust Pipe Of Parking Heater/Auxiliary Heater On Noise Insulation

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - arrows - for exhaust pipe of parking heater/auxiliary heater on noise insulation.

All

Fig 3: Locating Mounting Parts And Removing Noise Insulation

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove front noise insulation - 1 -.
Remove front bumper → 63 - BUMPERS .

Fig 4: Removing Bolt On Left/Right

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolt - arrow - on left and right.

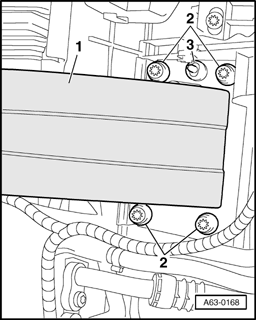

Fig 5: Removing Bolts On Left/Right

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - 2 - on left and right.

Fig 6: Installing Bolt From Support Tool 3369 On Left/Right

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install M8x90 bolt - 1 - , e.g. from support tool 3369 on left and right.

Fig 7: Removing Bolts And Pulling Lock Carrier Toward Front

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - arrows - and pull lock carrier toward front.

Installing

Installation is in reverse order of removal, note the following:

NOTE:

All cable ties which are opened or cut open when removing engine, must be replaced in the same position when installing engine.

Install lock carrier with attachments → 50 - BODY - FRONT .
Install front bumper → 63 - BUMPERS .
Adjust headlights → 94 - LIGHTS, SWITCHES - EXTERIOR .
