Engine, attaching to engine stand

WARNING: This page is about a different car, the 2006 Audi A8, 2005 Audi A8, and 2004 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

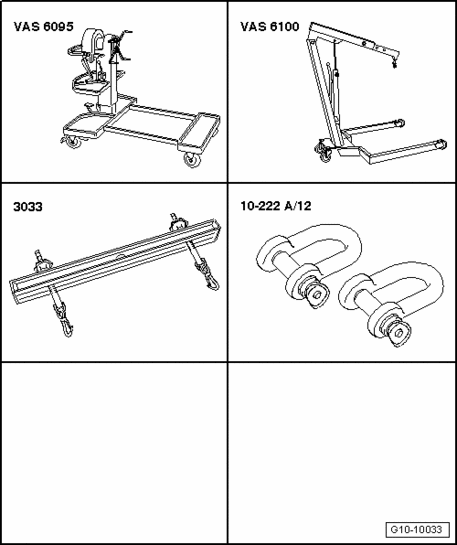

Fig 1: Identifying Special Tools - Engine, Attaching To Engine Stand

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Adapter set for engine and transmission support VW 540/1 B
Engine and transmission holder VAS 6095
Shop crane VAS 6100
Lifting tackle 3033

Shackle 10 - 222 A/12

Work procedure

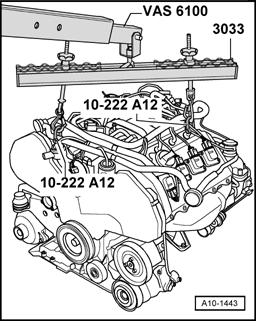

Fig 2: Hooking In Lifting Tackle 3033 At Shackles 10 - 222 A/12 And At Workshop Crane VAS 6100

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Engage shackle 10 - 222 A/12 at right front and left rear engine lifting eye.
Hook in lifting tackle 3033 at shackles 10 - 222 A/12 and at workshop crane VAS 6100 , as depicted in illustration.

Fig 3: Lifting Engine By Shop Crane VAS 6100 Far Enough So That Flywheel Center Is At Height Of Mounting Plate Of Engine And Transmission Holder VAS 6095

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Lift engine by shop crane VAS 6100 far enough so that flywheel center is at height of mounting plate of engine and transmission holder VAS 6095. Then, install with four universal mounting components at cylinder block as depicted.
