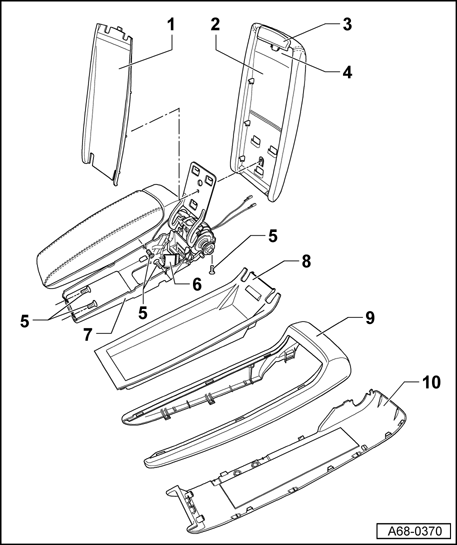

Divided Front Center Armrest, Disassembling and Assembling

1 - Cover

• Removing and Installing → Divided Front Center Armrest Cover, Removing and Installing

2 - Padding

• Removing and Installing → Divided Front Center Armrest Upholstery, Removing and Installing

3 - Button

• For opening the center armrest

4 - Spring

• Only inserted

5 - Bolts (Qty. 5), 0.7 Nm

6 - Storage compartment lighting

• LED
• Replace if faulty
• Removing and Installing → Storage Compartment Lamp, Removing and Installing

7 - Carrier with adjuster

• It is not possible to disassemble the carrier with the adjuster.
• Both of the individual armrests may only be separated from each other.

8 - Storage compartment

• Removing and Installing → Divided Front Center Armrest Storage Compartment, Removing and Installing

9 - Trim

• For the carrier with the adjuster
• Removing and Installing → Trim, Removing and Installing

10 - Lower cover

• Removing and Installing → Divided Front Center Armrest Lower Cover, Removing and Installing
