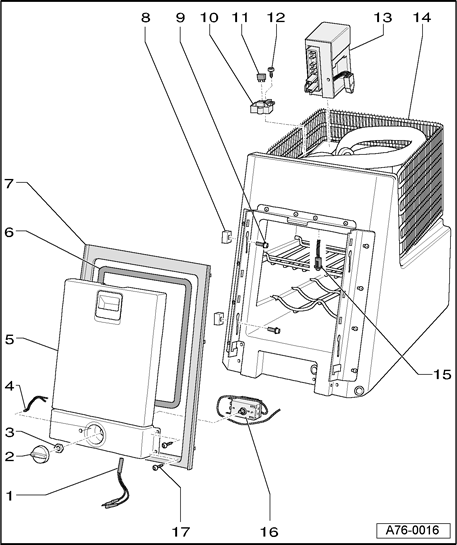

Component Overview

1 - Contact switch

• For operating interior light
• Removing and Installing → Cooler Interior Light Contact Switch, Removing and Installing

2 - Rotary handle

• For thermostat

3 - 12 Nm

4 - Light Emitting Diode (LED)

• Indicates operation
• Removing and Installing → LED Indicator, Removing and Installing

5 - Lid for cooler

6 - Gasket

7 - Decorative frame

8 - Clamping piece

9 - 4 Nm

10 - Battery monitor

• Removing and Installing → Battery Monitor, Removing and Installing

11 - Retainer

12 - 1.5 Nm

13 - Cooler compressor control module

• Removing and Installing → Cooler Compressor Control Module, Removing and Installing

14 - Cooler

• Removing and Installing → Cooler, Removing and Installing

15 - Light Emitting Diode (LED)

• For interior cooler light
• Removing and Installing → Cooler Interior Light LED, Removing and Installing

16 - Thermostat

• With capillary tube
• Capillary tube must not be kinked or damaged
• Removing and Installing → Thermostat, Removing and Installing

17 - 1.5 Nm
