Side Trim, Sill Side, Removing and Installing

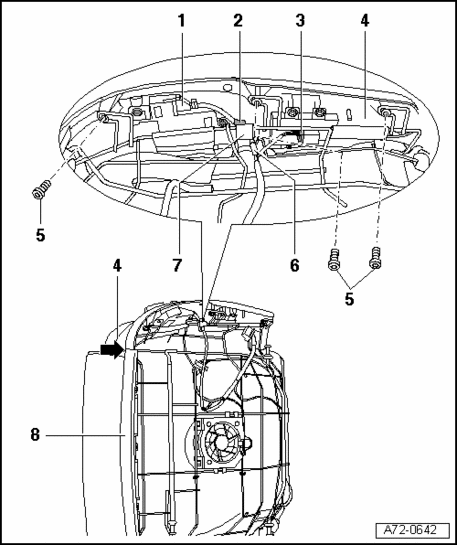

1 - Connector

2 - Clip

3 - Connector

4 - Side trim (sill side)

• Removing

• Remove seat pan → Seat Pan, Removing and Installing .
• Disengage front trim panel - 8  - at arrow position from side panel on door sill side - 4  -.
• Remove bolts - 5  - (3x).
• Using a screwdriver, pry out clip - 2  - from side panel on door sill side - 4  -.

• Disconnect connectors - 1  - and - 3  -.
• Pull off side panel on door sill side - 4  - toward rear.

• Installing

• Install side panel on door sill side - 4  - in reverse order of removal.
• Ensure that cable harness - 6  - runs behind the clamping strip - 7  -.

5 - Bolts (qty. 3)

• Tightening torque 2.5 Nm.

6 - Cable harness

7 - Retaining strip

8 - Front trim panel
