12 V Outlet in Luggage Compartment, from 06.04, Removing and Installing

Removing

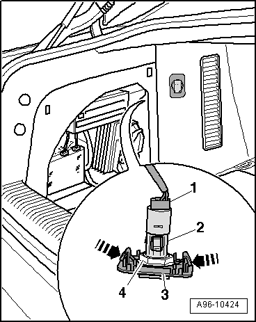

Fig 1: Releasing Retaining Clips On Back Of Luggage Compartment Side Trim And Detach 12 V Outlet

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove the luggage compartment side trim cover.
• Release the retaining clips - arrows  - on the back of the luggage compartment side trim and detach the 12 V outlet.
• Disconnect electrical connector - 1  -.
• Remove nut - 4  -.

• Remove the 12 V outlet - 2  - from the mount - 3  -.

Installing

Install in reverse order.
