Luggage Compartment Light W3 - Sedan, removing and installing

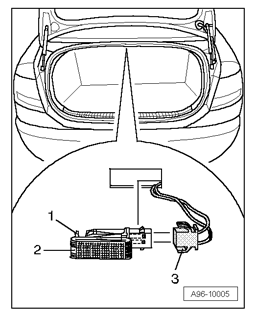

Fig 1: Pressing In Catch Using A Flat Screwdriver And Prying Out Luggage Compartment Lamp

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

• Press in catch - 1  - using a flat screwdriver and pry out luggage compartment lamp - 2  -.
• Disconnect electrical harness connector - 3  -.

Fig 2: Releasing Clips And Pulling Cover Off Above Light Bulb

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Release clips - arrows  - and pull cover - 1  - off above light bulb.

Fig 3: Removing Light Bulb (12 V, 5 W) From Socket On Back Side Of Luggage Compartment Lamp

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove light bulb - 1  - (12 V, 5 W) from socket - 2  - on back side of luggage compartment lamp.

Installing

Installation is performed in reverse order of removal, noting the following:

• Insert luggage compartment lamp into opening and engage on opposite side.
