Entry Assistance Button, Removing And Installing: Removing

-- Remove the entry assistance trim. Refer To ENTRY ASSISTANCE TRIM, REMOVING AND INSTALLING, POWER STANDARD SEAT .

-- Disconnect the electrical connector -1- on the entry assistance button -2-.

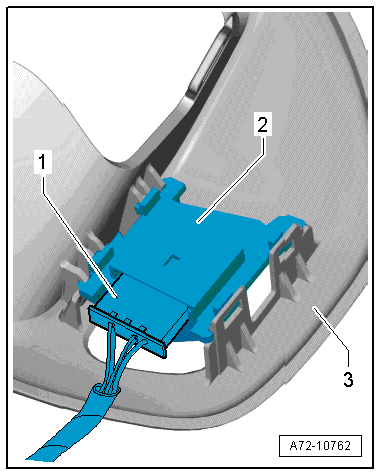

Fig 1: Identifying Entry Assistance Button
GWWA72-10762Courtesy of AUDI OF AMERICA, LLC

-- Unclip The Catches -arrows- At The Tabs.

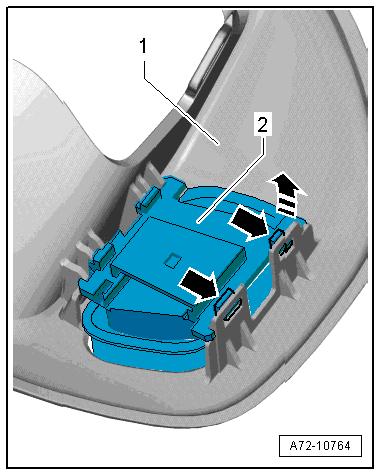

Fig 2: Uncliping Catches -Arrows- At The Tabs
GWWA72-10764Courtesy of AUDI OF AMERICA, LLC

-- Tilt the entry assistance button -2- out of the tabs in the direction of the -arrow- and disengage it -arrows-.

-- Remove the entry assistance button from the trim -1-.

NOTE:

The Entry Assistance Button Is Not Designed To Be Disassembled Further.
