Shock Absorbers, Checking On Shock Tester: Notes
Shock Absorbers Can Be Checked While Installed Using The Shock Tester (Shock Absorber Testing Device). The Damping Effect Can Be Evaluated Based On The Dial Reading Or Print-Out.
Special Tools And Workshop Equipment Required
- Boge Shock Tester Or
- Sachs Shock Tester:V.A.G 1975 or
- Maha Shock Absorber Tester:VAS 1990
Temperature +10 to +40 °C (+50 to +104 °F).
Driver In Vehicle.
Tire Pressure OK
Drive Vehicle Straight Onto Center Of Wheel Contact Plates.
Front Wheels In Straight Position.
Parking Not Engaged, Foot Brake Not Activated.
Threshold
Shock Absorber Condition Can Only Be Judged As Follows:
- Sufficient Damping Effect
or
- Insufficient Damping Effect
Intermediate Values For Reduced Damping Performance Cannot Be Read Out.
A Prognosis On Service Life Is Not Permitted.
Measured Values That Occur With The Involvement Of The Suspension Travel End Stops Are Incorrect.
The Following Values Apply Only To The Test Stands Named Above. If The Values Specified Are Exceeded, The Shock Absorber Has Lost Enough Of Its Effectiveness That It Should Be Replaced.
Example:
Threshold = 70
- a = greater than 70: Insufficient Damping Effect
- a = less than 70: Sufficient Damping Effect
The Shock Absorber Combination Installed In The Vehicle Is Indicated By The Corresponding PR Number On The Vehicle Data Plate.
Production Control Number (Pr Number) Explanation, Refer To PRODUCTION CONTROL NUMBER (PR NUMBER) EXPLANATIONS .

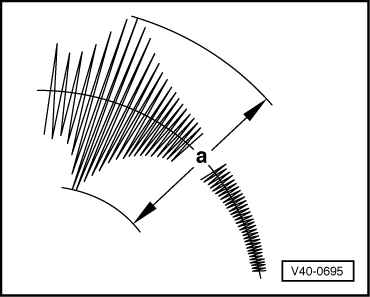

Threshold "a" in mm
If The Readout Value Is Greater Than The Limit Value "a" (table value) : Damping Effect Insufficient → Replace Shock Absorber.
If The Readout Value Is Less Than The Limit Value "a" (table value) : Damping Effect Sufficient → Shock Absorber Does Not Need To Be Replaced.
