Left Flange Shaft, Clutch Module, Side Shaft, Gearshift Shaft And Transmission Cover Assembly Overview

WARNING: This page is about a different variant/trim than selected.

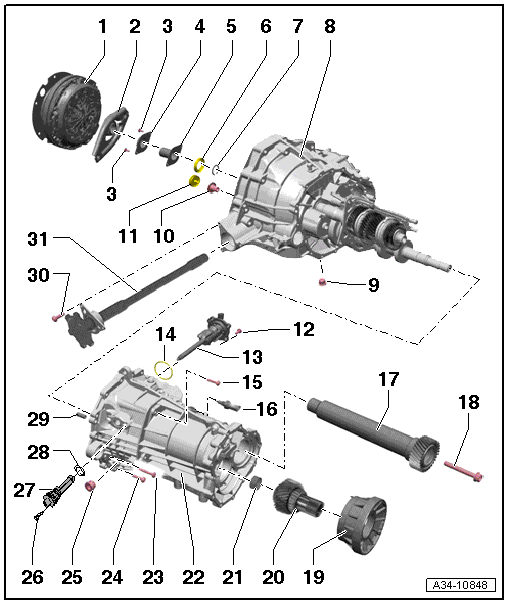

Fig 1: Identifying Left Flange Shaft, Clutch Module, Side Shaft, Gearshift Shaft And Transmission Cover Assembly
GWWA34-10848Courtesy of AUDI OF AMERICA, LLC
  1. Clutch Module
  2. Clutch Release Lever with Release Bearing and Spring
  3. Bolt
    • 8 Nm
    • Quantity: 2
    • Insert with locking fluid AMV 185 101 A1
  4. Securing Plate
    • Not installed on all versions
    • Installed position: the recess for the bolts -3- faces the clutch module
      NOTE:
  5. Guide Sleeve
    • If present, remove any grease from the guide sleeve
  6. Input Shaft Seal
  7. Securing Ring
  8. Transmission Housing
  9. Oil Drain Plug
    • 45 Nm
  10. Bolt
    • 200 Nm
    • For output shaft
    • Insert with locking fluid AMV 185 101 A1
  11. Sealing Cap
    • Always replace
    • With oil guide
    • For output shaft
  12. Bolt
    • Always replace
    • 10 Nm plus an additional 45° turn
    • Aluminum bolts (M8; 22 mm long)
    • Quantity: 4
  13. Selector Shaft with Selector Cover
    • Different versions are installed (with and without a transmission neutral position sensor -G701-)
  14. O-Ring
    • Always replace
  15. Bolt
    • 20 Nm plus an additional 30° turn
    • Steel bolts (M8; 30 mm long)
    • Quantity: 3
    • For the bearing bracket to the transmission cover
    • Insert with locking fluid AMV 185 101 A1
  16. Transmission Range Gear Recognition Switch -F208-
    • 20 Nm
  17. Side Shaft
    • With helical gear wheel
  18. Bolt
    • Always replace
    • 150 Nm + 90° additional turn
    • For the side shaft to the pinion
    • Bolt head, 21 mm (12-point)
  19. End Shield
  20. Spur Gear
    • Side shaft/pinion drive wheel
  21. Needle Bearing
    • For the spur gear -20-
    • Mount on the output shaft
  22. Transmission Cover
  23. Bolt
    • 15 Nm plus an addition 90° turn
    • Steel bolt (M8; 50 mm long)
    • Quantity: 1
  24. Bolt
    • Always replace
    • 10 Nm plus an additional 90° turn
    • Aluminum bolts (M8; 35 mm long)
    • Quantity: 16
  25. Oil Fill Plug
    • 45 Nm
  26. Bolt
    • Always replace
    • 10 Nm plus additional 45° turn
    • Aluminum bolt (M8; 22 mm long)
    • For the transmission neutral position sensor -G701- or the plug and at the same time for the cover/gearshift shaft to the transmission cover
    • Not installed on all versions
  27. Transmission Neutral Position Sensor -G701- or Cap
    • Transmission neutral position sensor for vehicles with the Start/Stop System
    • A cap is installed in place of the transmission neutral position sensor -G701-
    NOTE:

    It is not necessary to remove the cap with disassembling and assembling the transmission, if a cap is installed in place of the transmission neutral position sensor -G701-.

  28. O-Ring
    • Always replace
    • On transmissions with a transmission neutral position sensor -G701- or a cap
  29. Alignment Bushing
    • Quantity: 2
  30. Bolt
    • 15 Nm plus an additional 45° turn
    • Steel bolts (M8; 25 mm long)
    • Quantity: 3
  31. Flange Shaft, Left
    • With bracket
