Charge Air Pressure Sensor, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2017 Audi S5, 2016 Audi S5, 2016 Audi S4, 2015 Audi S5, and 2015 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

Version 2 Cylinder Bank 1 (right)

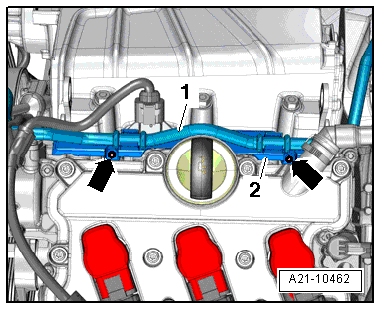

Fig 1: Identifying Version 2 Cylinder Bank 1 (Right)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and move the bracket and fuel hose -1- to the side.

Cylinder Bank 2 (left)

Fig 2: Identifying Vacuum Hose -1-, Bolts -Arrows- And Cover -2-

Courtesy of AUDI OF AMERICA, LLC

-- Free up the vacuum hose -1-.

-- Remove the bolts -arrows- and remove the cover -2-.

Continued for Both Sides

-- Disconnect the connector -1-.

-- Remove the bolts -arrows- and remove the charge air pressure sensor.

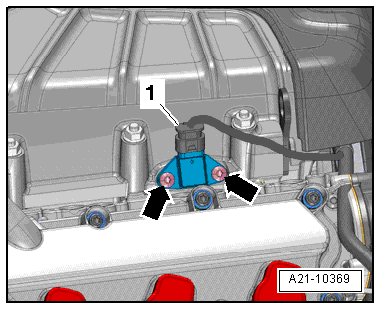

Fig 3: Installation Location Of Charge Air Pressure Sensor /Intake Manifold Temperature Sensor

Courtesy of AUDI OF AMERICA, LLC
