Turbocharger Vacuum Diaphragm, Adjusting: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Audi A5 Quattro, 2016 Audi A5 Quattro, 2015 Audi A5 Quattro, 2014 Audi A5 Quattro, and 2013 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Dial Indicator Holder :VW387
Hand Vacuum Pump :VAS6213
Pressure Control Valve :VAS6342
Digital Pressure Sensor :VAG1397B
Dial Gauge Set :VAS6341
Torque Wrench 1783 - 2-10Nm :VAG1783
Torque Wrench 1783 - Open Jaw - 10mm :VAG1783/1

NOTE:

This Procedure Description Is Only For 1.8L Engines.

Adjusting

Turbocharger Removed.

NOTE:

It Is Necessary To Adjust The Diaphragm Only If It Has Been Removed.

-- Pre-Adjust The Bypass Door -1- Via Nut -Arrow- So Bypass Door Can Still Just Be Turned By Hand.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the :VW387 onto the turbocharger -arrow-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The mm specifications apply to the value read out (includes 1 mm pretension).

The :VAS6341/1 with :VAS6341/3 must align with the linkage on the vacuum diaphragm.

-- Secure the :VAS6341/1 with the :VAS6341/3 and :VAS6341/4 to the :VW387 .

-- Set the :VAS6341/1 to 1 mm pretension.

-- Turn the :VAS6341/1 display to 0.

-- Check the dial gauge for ease of movement.

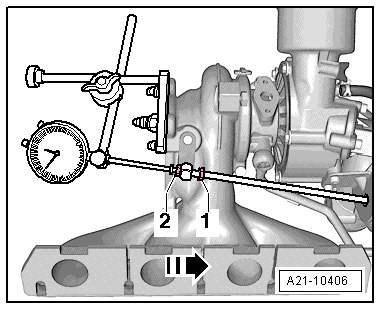

-- Turn the nut -1- approximately seven turns in the direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the nut -2- in the direction of -arrow- until the dial gauge shows 7 mm.

-- Hand-tighten the nut -1-.

-- Set the :VAS6341/1 to 1 mm pretension.

-- Turn the :VAS6341/1 display to 0.

-- Connect the :VAS6213 and the :VAG1397B to connection II and the :VAS6342 as shown.

Courtesy of AUDI OF AMERICA, LLC

-- Switch on the :VAG1397B and set the sliding switch to position II.

-- Close the :VAS6342 on the lever -1-.

-- Set the slide ring -1- on the :VAS6213 in position -B- for "pressure".

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The Following Measurements Must Be Performed In One Sequence. In The Meantime, The Pressure Must Not Dissipate To 0.

-- Operate the :VAS6213 until the :VAG1397B displays 460 +/- 5 mbar (6.67 ± 0.07 psi).

NOTE:

If 460 ± 5 mbar (6.67 ± 0.07 psi) is exceeded, then the measuring must be started again from the beginning.

-- Read and note the value on the :VAS6341/1 .

-- Operate the :VAS6213 until the :VAG1397B displays 650 mbar to 700 mbar (9.42 psi to 10.15 psi).

-- Reduce the pressure to 460 +/- 5 mbar (6.67 ± 0.07 psi) via :VAS6342 .

NOTE:

If 460 ± 5 mbar (6.67 ± 0.07 psi) is not reached, then the measuring must be started again from the beginning.

-- Read and note the value on the :VAS6341/1 .

-- Add value 1 and 2 together and divide by two.

-- The result (mean value) must be 5 +/- 0.5 mm.

-- If the value is greater, then lower the pressure to 0 bar, loosen the nut -1- and turn the nut -2- a half a turn and then tighten the nut -1- hand-tight.

Courtesy of AUDI OF AMERICA, LLC

-- Set the :VAS6341/1 to 1 mm pretension.

-- Turn the :VAS6341/1 display to 0 and repeat the measurement.

-- If the average value is 5 ± 0.5 mm, then tighten the lock nut and repeat the measurement.

-- If the average value is 5 ± 0.5 mm, then secure the nuts with sealing wax. Refer To Parts information for the correct sealing wax.

-- Secure the new securing plate -1- over the vacuum diaphragm linkage.

Courtesy of AUDI OF AMERICA, LLC
