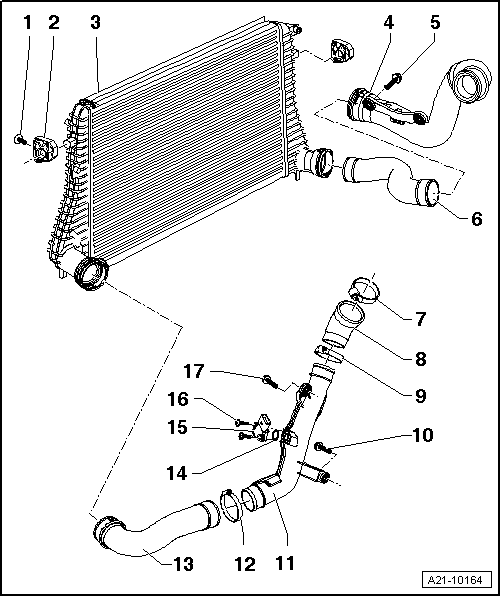

Charge Air Cooler Overview
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 5 Nm
- Mount
- For charge air cooler
- Charge Air Cooler
- Charge Air Pipe
- Assembly of hose connections with connection couplings, refer to HOSE CONNECTIONS WITH CONNECTOR COUPLINGS, ASSEMBLING
- Bolt
- 10 Nm
- Charge Air Hose
- Assembly of hose connections with connection couplings, refer to HOSE CONNECTIONS WITH CONNECTOR COUPLINGS, ASSEMBLING
- Hose clamp
- Charge Air Hose
- To throttle valve control module -J338-
- Hose Clamp
- Bolt
- 10 Nm
- Charge Air Pipe
- Hose Clamp
- Charge Air Hose
- Assembly of hose connections with connection couplings, refer to HOSE CONNECTIONS WITH CONNECTOR COUPLINGS, ASSEMBLING
- Seal
- Replace
- Charge Air Pressure Sensor -G31-
- Bolt
- 5 Nm
- Bolts
- 10 Nm
