Control Module Carrier Plate, Removing and Installing

NOTE:

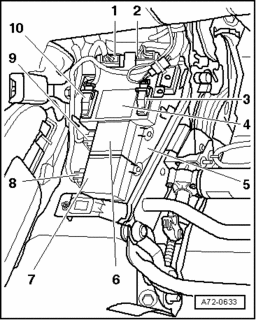

Fig 1: Control Module Carrier Plate Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Seat adjustment control module - 4 - : harness connectors - 1 - and - 10 - of right seat, harness connectors - 2 - and - 3 - of left seat.
Control module - 6 - : for right seat ventilation.
Control module - 7 - : for left seat ventilation.

Removing

On vehicles with center console extension: Remove center console extension → Center Console Extension, Removing and Installing .
On vehicles without center console extension: Remove center section → Center Seat Section, Removing and Installing .
Disconnect electrical connections - 1 -, - 2 -, - 3 - and - 10 - on seat adjustment control module - 4 -.
Disconnect electrical connection - 9 - at seat ventilation control module of right seat - 6 -.

Disconnect electrical connection - 8 - at seat ventilation control module of left seat - 7 -.
Pull out carrier plate - 5 - upward.

Installing

Install carrier plate - 5 - in reverse order of removal.
