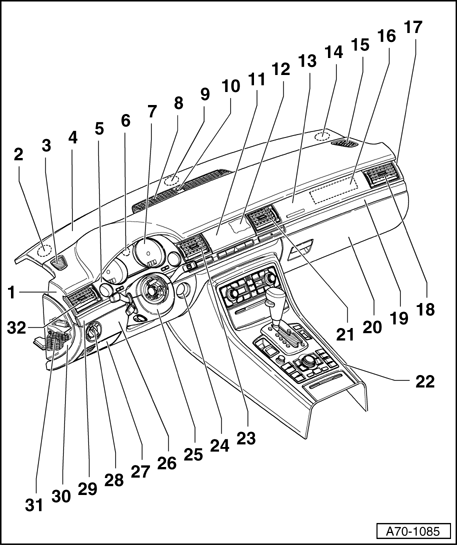

Instrument Panel, Component Location
1 - Instrument Panel
- Removing and Installing → Instrument Panel, Removing and Installing
2 - Speaker
- Removing and Installing → 91 - COMMUNICATION
3 - Left defroster outlet
- Removing and Installing → Right and Left Defroster Outlets, Removing and Installing
4 - Panel for indirect ventilation
- Removing and Installing → Indirect Ventilation Trim, Removing and Installing
5 - Instrument cluster panel
- Removing and Installing → Instrument Cluster Trim, Removing and Installing
6 - Front Parking Aid Warning Buzzer H22 and Headlamp Range Control Module J431
- Removing and Installing → 94 - LIGHTS, SWITCHES - EXTERIOR
7 - Instrument cluster
- Removing and Installing → 90 - INSTRUMENTS
8 - Center defroster outlet
- Removing and Installing → Center Defroster Outlet, Removing and Installing
9 - Speaker
- Removing and Installing → 91 - COMMUNICATION
10 - Sunlight photo sensor G107
- Removing and Installing → Sunlight Photo Sensor with Cover, Removing and Installing
11 - Panel for Front Information Display Control Head J685
- Removing and Installing → Front Information Display Control Head Trim, Removing and Installing
12 - Front Information Display Control Head J685
- Removing and Installing → 91 - COMMUNICATION
13 - Panel above glove compartment
- Removing and Installing → Trim over Glove Compartment, Removing and Installing
14 - Speaker
- Removing and Installing → 91 - COMMUNICATION
15 - Right defroster outlet
- Removing and Installing → Right and Left Defroster Outlets, Removing and Installing
16 - Passengers airbag unit
- Removing and Installing → Front Passenger Airbag, Removing and Installing
17 - Right instrument panel cover
- Removing and Installing → Left Instrument Panel Cover, Removing and Installing
18 - Instrument panel vent
- Removing and Installing → Instrument Panel Vent, Removing and Installing
19 - Decorative panel with right switch strip
- Removing and Installing → Right Trim Molding with Switch Strip, Removing and Installing
20 - Glove compartment
- Removing and Installing → Glove Compartment, Removing and Installing
21 - Instrument panel vent
- Removing and Installing → Instrument Panel Vent, Removing and Installing
22 - Center Console
- Removing and Installing → Center Console without Extension, Removing and Installing
23 - Instrument panel vent
- Removing and Installing → Instrument Panel Vent, Removing and Installing
24 - Access/Start Authorization Switch E415
- Removing and Installing → 94 - LIGHTS, SWITCHES - EXTERIOR
25 - Steering column trim
- Removing and Installing → Steering Column Trim, Removing and Installing
26 - Driver-side storage compartment
- Removing and Installing → Driver Side Storage Compartment, Assembly Overview
27 - Storage compartment
- Removing and Installing → Storage Box in Driver Side Storage Compartment, Removing and Installing
28 - Light switch
- Removing and Installing → 96 - LIGHTS, SWITCHES - INTERIOR, ANTI-THEFT
29 - Left decorative panel
- Removing and Installing → Left Trim Molding, Removing and Installing
30 - Left instrument panel cover
- Removing and Installing → Left Instrument Panel Cover, Removing and Installing
31 - Left/right fuse holder
- Removing and Installing → 97 - WIRING
32 - Instrument panel vent
- Removing and Installing → Instrument Panel Vent, Removing and Installing
