One-Piece Center Armrest, Removing and Installing

Special tools, testers and auxiliary items required

Fig 1: Torque Wrench V.A.G 1783

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Torque wrench V.A.G 1783/

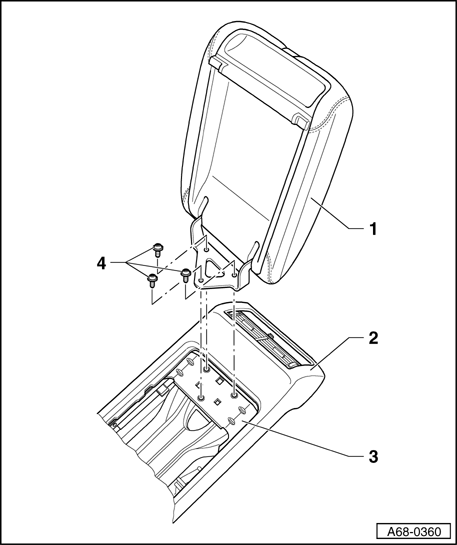

Fig 2: One-Piece Center Armrest Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Center armrest

• One-piece version
• Removing

• Switch off ignition.
• Bring center armrest - 1  - upward.
• Remove storage compartment → Center Console Storage Compartment, One-Piece Center Armrest, Removing and Installing .
• Remove screws - 4  - (qty. 3).

• Remove headrest - 1  - from center armrest bracket - 3  -.

• Installing

Installation is reverse of removal.

2 - Center Console

3 - Center armrest bracket

4 - Bolts (3x), 4 Nm
