Cooler, Removing and Installing
Removing
- Fold down center armrest and open cooler.

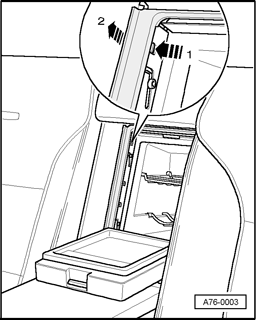

- Disengage retaining clips at left and right - arrow 1 -.
- Remove decorative frame on cooler - arrow 2 -, to do so the cooler lid must be closed again slightly.

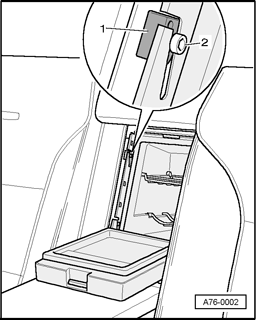

- Loosen bolts - 2 - approximately 2 rotations.
- Pull out clamping pieces - 1 - over the guide.
- Open luggage compartment and fold back floor mat.
- Disconnect the electrical connector - arrow -.
- Remove cooler - 1 - from luggage compartment.
Installing
Installation is reverse of removal, noting the following:
- Bring cooler to installation position.
- Open cooler.
- Insert clamping pieces - 1 - with the bolts screwed in - 2 - into guide on cooler.
- Slide clamping pieces downward toward stop.
- Pull cooler out on to rear backrest and slide clamping pieces downward as far as possible.
- Tighten screws.
- Install decorative frame.
Tightening torque
| Component | Nm |
|---|---|
| Clamping piece to cooler | 4 |
