Rear Center Console Extension

Special tools, testers and auxiliary items required

Fig 1: Torque Wrench V.A.G 1410

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Torque wrench V.A.G 1410

• Remove center console extension → Center Console Extension, Removing and Installing .

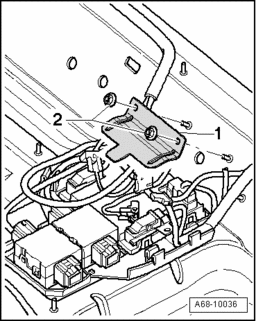

Fig 2: Rear Center Console Extension Bracket & Nuts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove backrest center section → Center Backrest Section, Removing and Installing .
• Remove nuts - 2  - (qty. 2). 4 Nm.
• Remove bracket - 1  -.
